DOWNLIGHTS

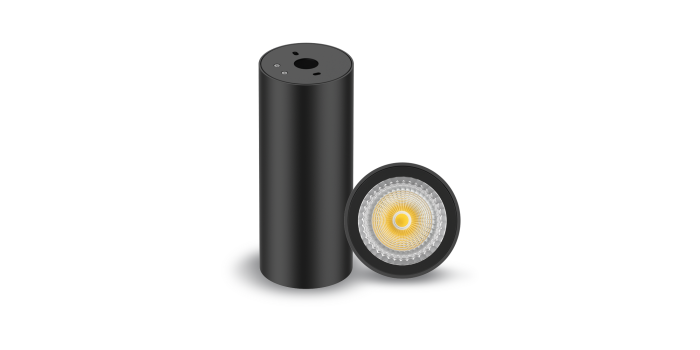

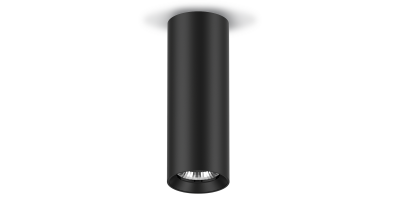

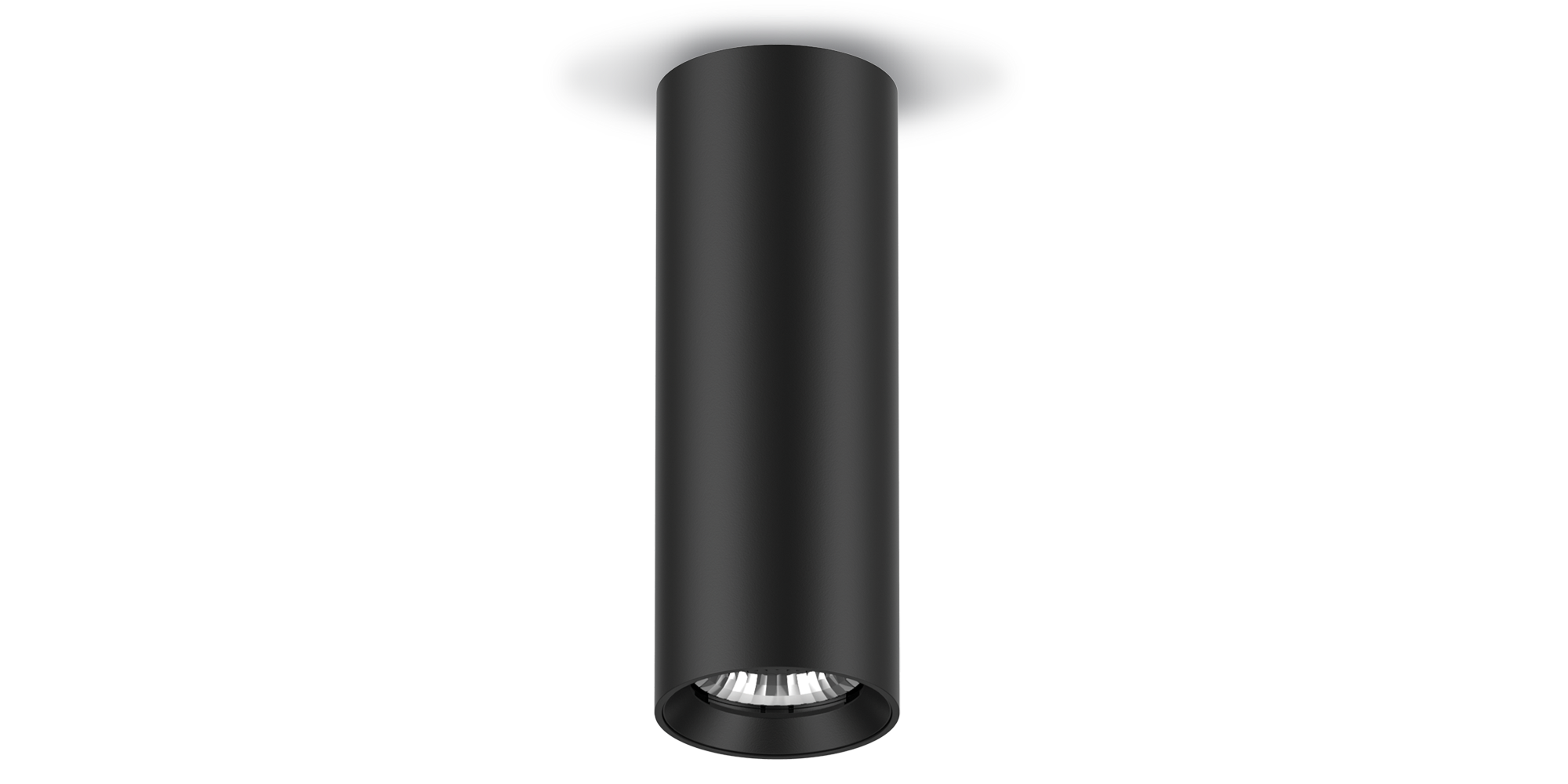

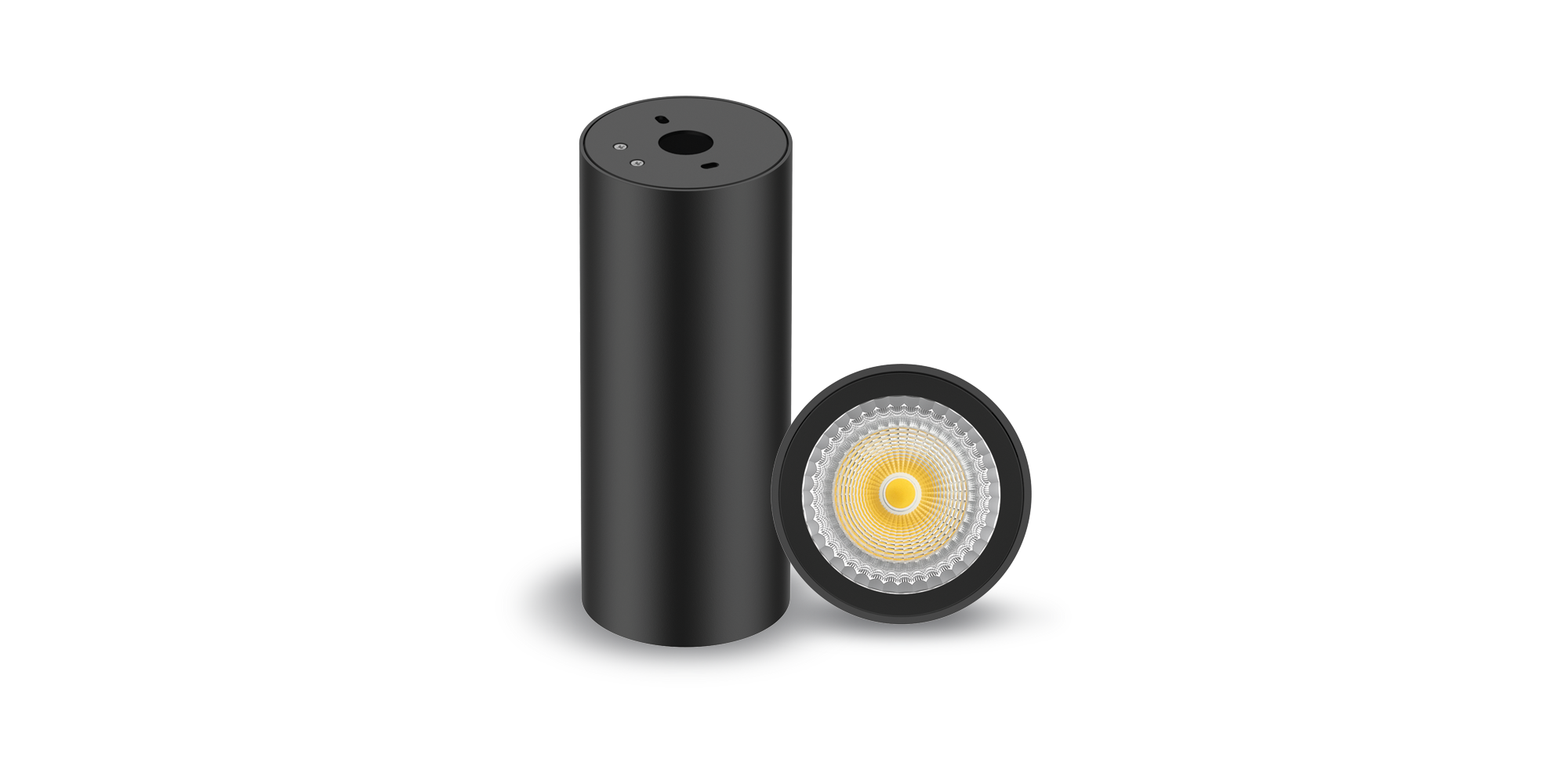

Downlight LEO Power changing 10 / 12 / 15W

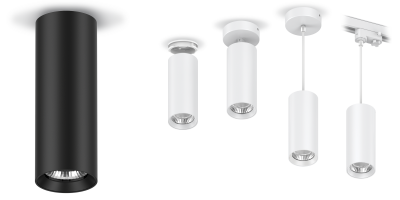

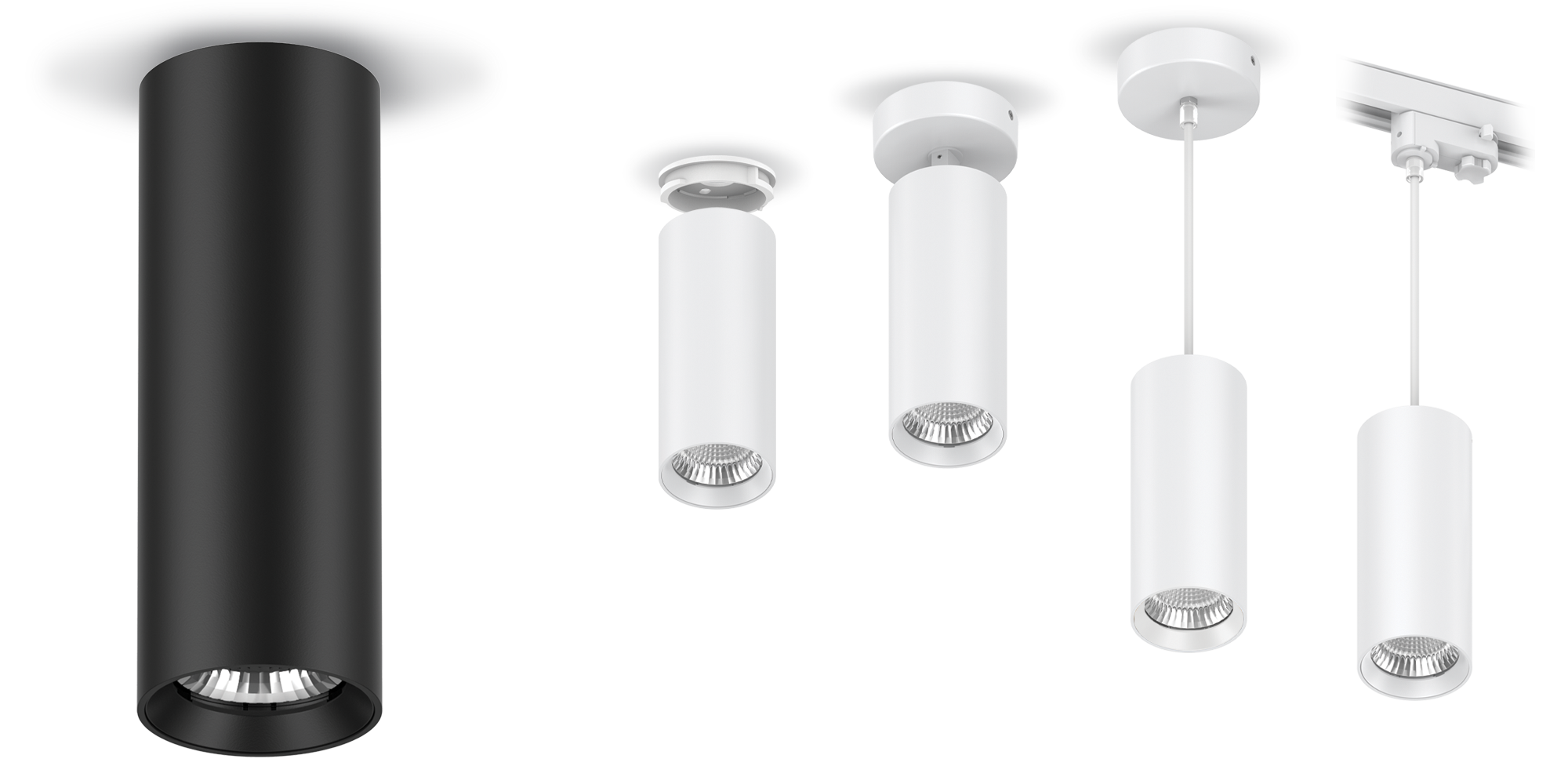

Downlight moderne et design offrant une grande modularité. Il convient à plusieurs installations : au plafond sur un support de fixation fixe ou orientable ou suspendu via un rail ou un câble. Idéal pour les projets tertiaires, les commerces et tous espaces appelant à une scénographie. Le LEO est Power changing 10/12/15W et CCT Changing 3000k / 4000k / 5000k. Luminaire performant et robuste : haute efficacité lumineuse de 120lm/W, faible éblouissement, corps en aluminium, garantie 5 ans. Existe en deux finitions, noire ou blanche.

Votre Référence

Coloris

Réf. Article
DL15LEO02CCT

Contacter votre distributeur partenaire pour plus d’information.

Téléchargements

Loading...
Fiche Technique

Size: 533.1 KiB

Type: application/pdf

Updated: 13/02/2024 16h45

Caractéristiques

PuissancePower changing 10 / 12 / 15W
Température CouleurCCT changing 3000K / 4000K / 5000K
ColorisNoir
Flux Lumineux~1800 lm max

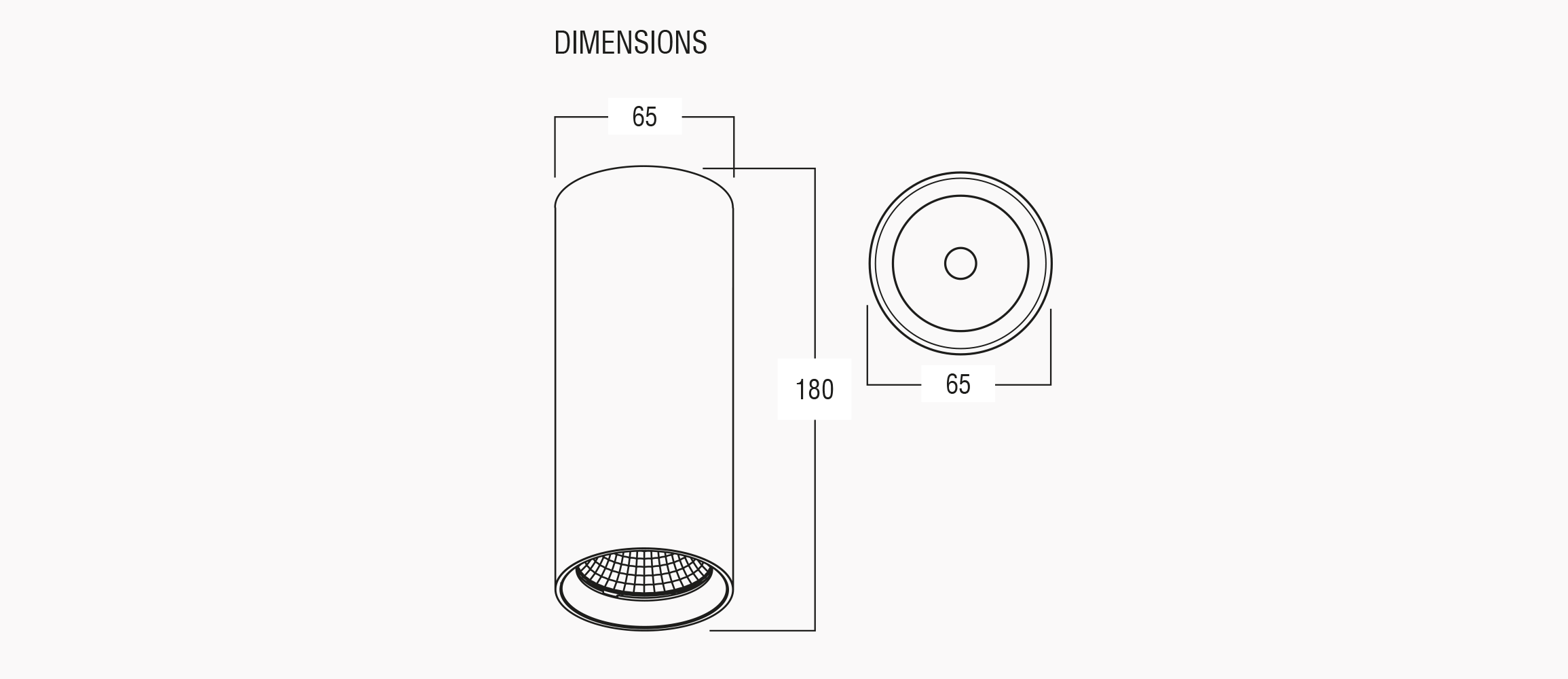

DimensionsØ65 H:180
Angle60°
Indice de ProtectionIP20
Efficacité Lum.120 lm/W
Durée de vie50 000 H
Palettisation1152
Garantie5 ans

Drivers et Accessoires Compatibles

  • Support de fixation Plafond orientable Blanc pour LEO

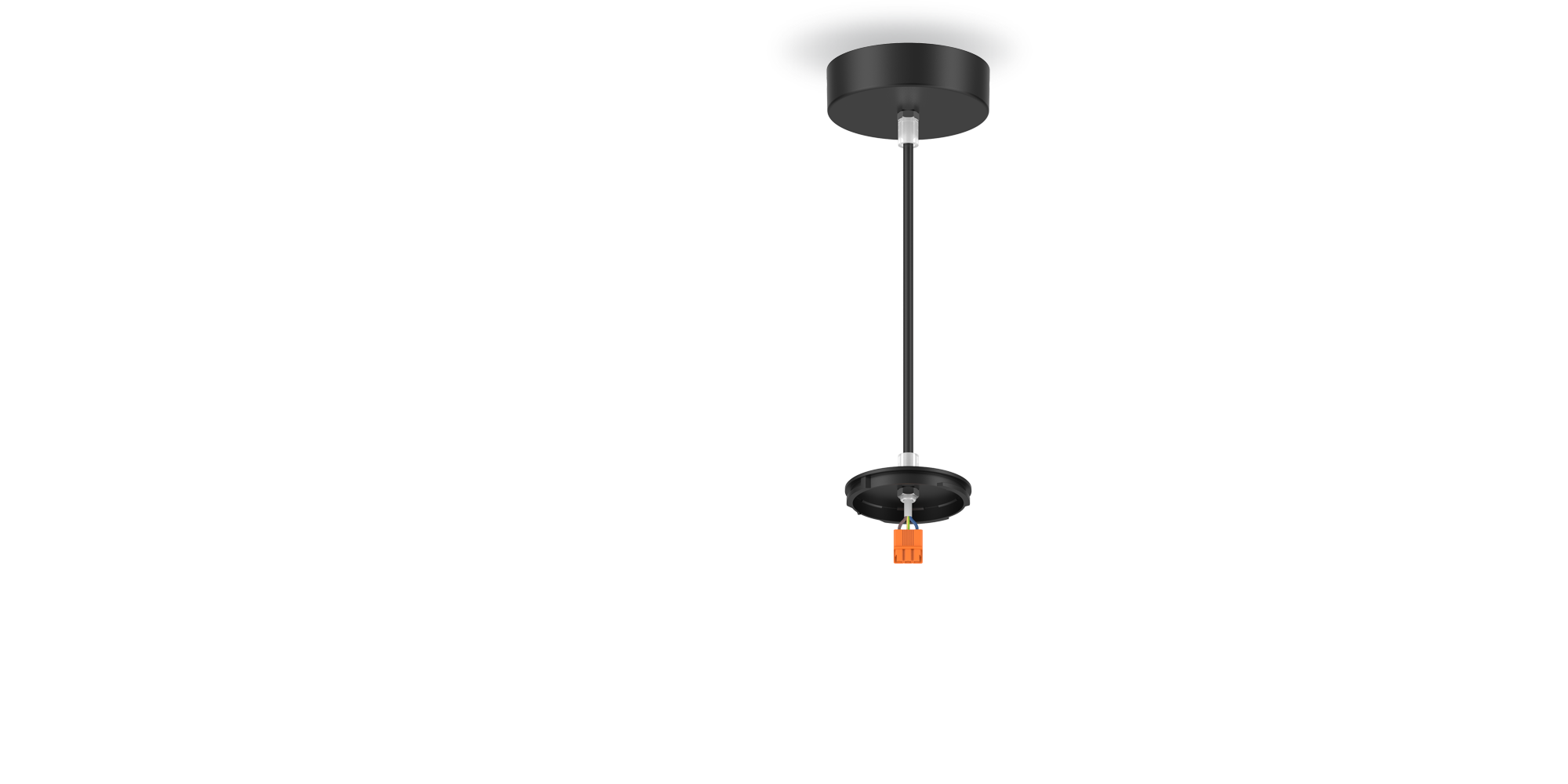

  • Support fixation Pendant 1m de câble Blanc pour LEO

  • Support Pendant pour rail 3 allumages 1m de câble Blanc pour LEO

  • Support de fixation Plafond orientable Noir pour LEO

  • Support fixation Pendant 1m de câble Noir pour LEO

  • Support Pendant pour rail 3 allumages 1m de câble Blanc pour LEO

  • Support Pendant pour rail 3 allumages 1m de câble Noir pour LEO

  • Ecarteur d'isolant downlight H<90mm & dalle 60x60 30x120 60x120 (x2)
